Wireless Microphone

Mipro ACT-2401

Choose Options

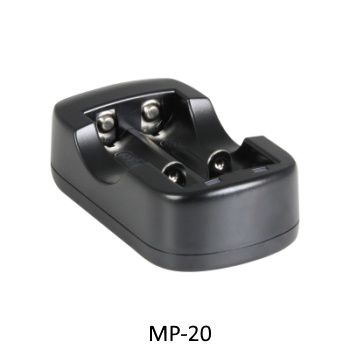

with MP-20 Battery Charger Price
Receiver + ACT-24HC RM 3,200 each
Receiver + ACT-24TC RM 3,200 each

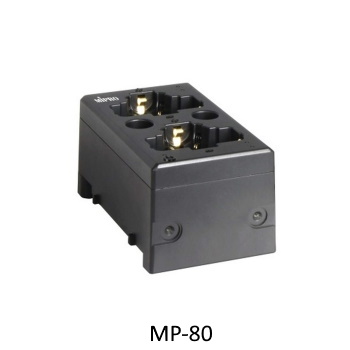

with MP-80 3-in-1 Transmitter Charger Station Price
Receiver + ACT-24HC RM 3,600 each
Receiver + ACT-24TC RM 3,600 each

  • The receiver in full-rack metal chassis has antenna connectors on the rear panel for connecting the external antenna system. The receiver in half-rack metal chassis has a built-in high efficiency antenna on the front panel.
  • MIPRO’s unique control panel equips a graphic OLED, providing a larger field of view without blind angles.
  • Up to 12 channels for interference-free operation in one frequency band.
  • Dual tuner true diversity receiving ensures long reception distance and eliminates signal drop-out.
  • ACT-2414A/2412A are equipped with TNC connectors for daisy chain output which can be daisy-chained up to three receivers.
  • MIPRO Auto Scan and ACT™ function provide the transmitter’s frequency with precise and rapid sync to the receiver.
  • Effectively avoids RF interference from UHF communication products
  • Antenna connector provides bias for MIPRO antenna systems to boost reception distance and signal.
  • External AC 100 – 240 V switching power supply to ensure stable operation of the system even under drastic voltage change.
  • Pairs with ACT-240H handheld and ACT-240T bodypack transmitter.
  • All are designed and made in Taiwan to ensure high quality and value.

    • Datasheet ACT-2401 Datasheet [PDF]
    Channel Single
    Chassis EIA standard half-rack (9.5") metal chassis
    Display Graphic OLED
    Frequency Range ISM 2.4 GHz
    Preset Channels 12
    Receiving Mode Dual tuner true diversity receiving
    Sample Rate 24-bit / 44.1 kHz
    Frequency Response 20 Hz ~ 20 kHz
    Latency < 4.0 ms
    Dynamic Range > 117 dBA
    Output Connectors Balanced XLR & Unbalanced Ø 6.3 mm phone jack, -10 to +20 dB adjustable range
    Antenna Built-in, front panel
    Power Supply DC 12 – 15 V. External AC 100 – 240 V switching power supply
    Dimensions 210 × 44 × 162 mm (W×H×D)
    Weight Approx. 0.7kg
    Note Refer to the actual product in the event of product discrepancy
    Price

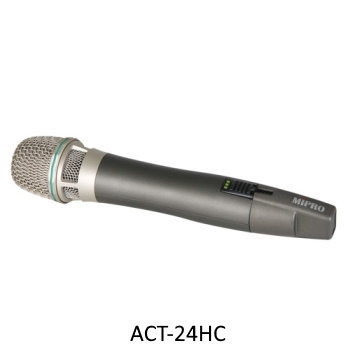

    ACT-24HC Rechargeable UHF Handheld Mic RM 1,600

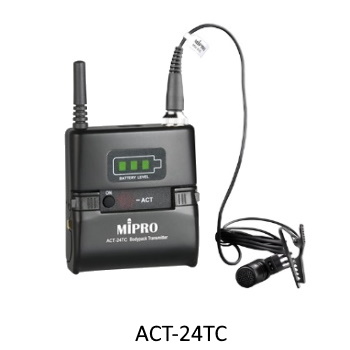

    ACT-24TC Rechargeable UHF Bodypack Clip Mic RM 1,600
    MU-53HN-XLR Headworn Mic RM 760
    Power Adapter RM 600
